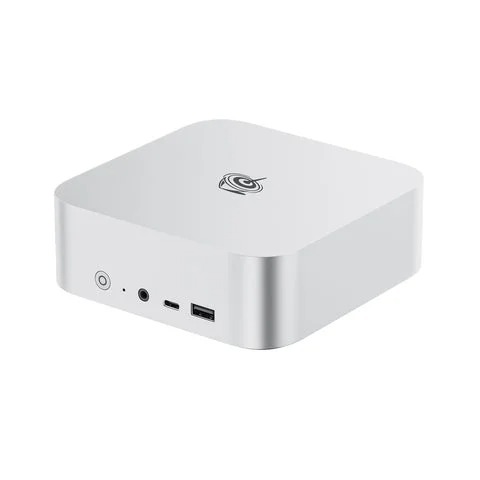

BEELINK SER10 MAX mini PC
Beelink SER10 MAX is a high-performance mini PC powered by the AMD Ryzen AI 9 HX 470 processor. It is designed for demanding AI workloads, creative content creation, and gaming, featuring the AMD Radeon 890M integrated graphics and a dedicated NPU for up to 86 TOPS of AI.
Powerful AMD Ryzen™ AI 9 HX 470 CPU and AMD Radeon™ 890M GPU
AMD Ryzen™ AI 9 HX 470 CPU (12 cores, Zen 5 Architecture), combined with a new Radeon™ 890M iGPU, a new generation XDNA 2 NPU and 86 AI TOPS, the Ryzen™ AI 9 HX470 processor’s fully upgraded architecture significantly boosts the SER10 MAX's overall performance, delivering a faster, smarter, and more secure Al PC experience!
Storage Expansion Options
SER10 MAX features high frequency DDR5 5600 MT/s RAM of 32GB/64GB, delivering you the smoothest experience in Al computing, gaming and multimedia entertainment. There are also dual high-speed M.2 2880 PCle 4.0 SSD slots, supporting up to 8TB (Maximum 4TB per module) of fast internal storage.
Triple-display Output
With HDMI (2.1) & DisplayPort & Full Featured USB 4.0 (40Gbps/PD/DP1.4), the SER10 MAX supports up to triple 4K displays
10Gbps Wired Networking
The SER10 MAX features an upgraded 10Gbps LAN port, delivering four times the speed of standard 2.5Gbps Ethernet. This enables ultra-fast transfers of large files, swift backups, and low-latency connections-eliminating bottlenecks and delivering a seamless high-speed networking experience.
MSC 2.0 Vapor Chamber Uniform Cooling Technology
The MSC 2.0 Vapor Chamber evenly and rapidly distributes CPU heat across the entire cooling surface, preventing localized hotspots and significantly improving thermal efficiency. By spreading heat instantly to every contact point, it enables faster heat dissipation, more stable performance under heavy workloads, and sustained peak output even during long-term, high-intensity operation.
Specifications :
| Model | SER 10 Max |
| Processor | AMD Ryzen™ AI 9 HX 470, 12 cores / 24 threads, turbo up to 5.2GHz, 24 MB L3 Cache AI performance : Up to 86 TOPS (overall) |
| Graphics | AMD Radeon™ 890M (up to 3.1GHz) |
| Memory | Dual channel DDR5 SODIMM x 2 (max 64GB) Pre-installed : 32 / 64GB DDR5 (5600MHz) |
| Storage | 2 x M.2 2280 PCle4.0 x4 Slots (max.8TB) Pre-installed : 1TB SSD |
| Ethernet | 1 x 10Gb LAN port (10/100/1000/2500/10000 Mbps) |
| Wireless | - WiFi 6 (Intel AX200) - Bluetooth 5.2 |
| Video Output | HDMI (2.1) x 1 (4K@240Hz) DisplayPort (1.4) x 1 USB 4.0 Type-C x 1 (40 Gbps/PD/DP1.4) Support triple 4K displays |
| Audio | HDMI (2.1) x 1 3.5mm Audio Jack x 2 |
| I/O Ports & Button | HDMI (2.1) x 1 DisplayPort (1.4) x 1 USB 4.0 Type-C x 1 (40 Gbps) USB 3.2 Type-C x 1 (10 Gbps, Data) USB 3.2 Gen 2 Type-A x 2 (10 Gbps) USB 2.0 x 2 10 Gb LAN Port x 1 3.5mm Audio Jack x 2 Power Button x 1 Reset Hole x 1 |
| Cooling System | MSC 2.0 Cooling System : Vapor Chamber + Silent Fan + SSD Heatsink |
| Power | DC 19V, 5.26A Adapter (100W) |
| Operating System | Windows 11 Pro |
| Case Material | Aluminium |
| Dimensions (W x D x H) | 135 x 135 x 44.7 mm |
| Weight | 520 g |
